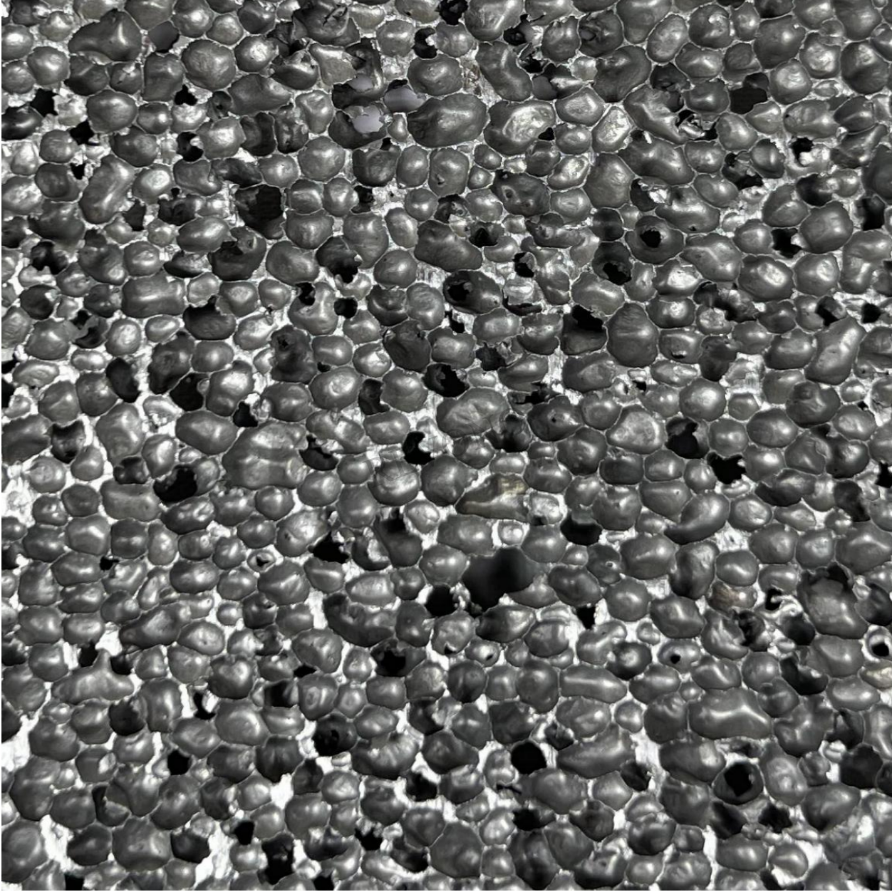

Aluminum Foam-Translucent Board

$9.80

Size:Sample Size:100*200*5mm

Regular Size:2000*1000*5mm

Vendor:Materialsyi

Type:Building Consumables

SKU: Y0280100003- Categories: ,

INSTALLATION:

Exterior wall installation:

Dry hanging a main keel a pair of keels a hanging plate →screws or bolts. All kinds of structural adhesive or high strength metal bonding adhesive (3M, etc.) can assist fixation. (Screws and bolts should be made of stainless steel).

Interior wall installation:

1.A thousand keel and a pair of keels (screw fixation)

2 Paste a high flatness base plate, a dozen back glue and a screw (large holes with clips temporarily fixed, to be 24 hours later or longer, according to the performance of the glue to decide), remove the screws and clips on the upper plate

3.Traditional machine fixing>wall>high levelness base plate (or wood square and other)>plate surface positioning>regular drive into the butterfly screw bolts should be stainless steel material).

Ceiling installation:

Because ALUSION aluminum foam panels are light, installation is very simple and mechanically fixed (screws,bolts).I hang, magnetic suction.(Screws and bolts should be made of stainless steel).

Additional information

Weight 0.5 kg
Model

Aluminum Foam-Translucent Board aperture 5-7mm

Color

Aluminum color

Sample size

100*200mm,0.5KG

Regular size

2000*1000mm

Material

Pure aluminum or aluminum alloy with additives foaming

Feature

Light texture, flame retardant, heat insulation, sound absorption and noise reduction

Application place

Interior and exterior walls and top surface
